KWR Bluetooth Hydraulic Controller Instruction Manual
(applies to KWR-005, KWR-006, KWR-007, and KWR-008 - *Remote Key Fob may differ depending on model)

Installation

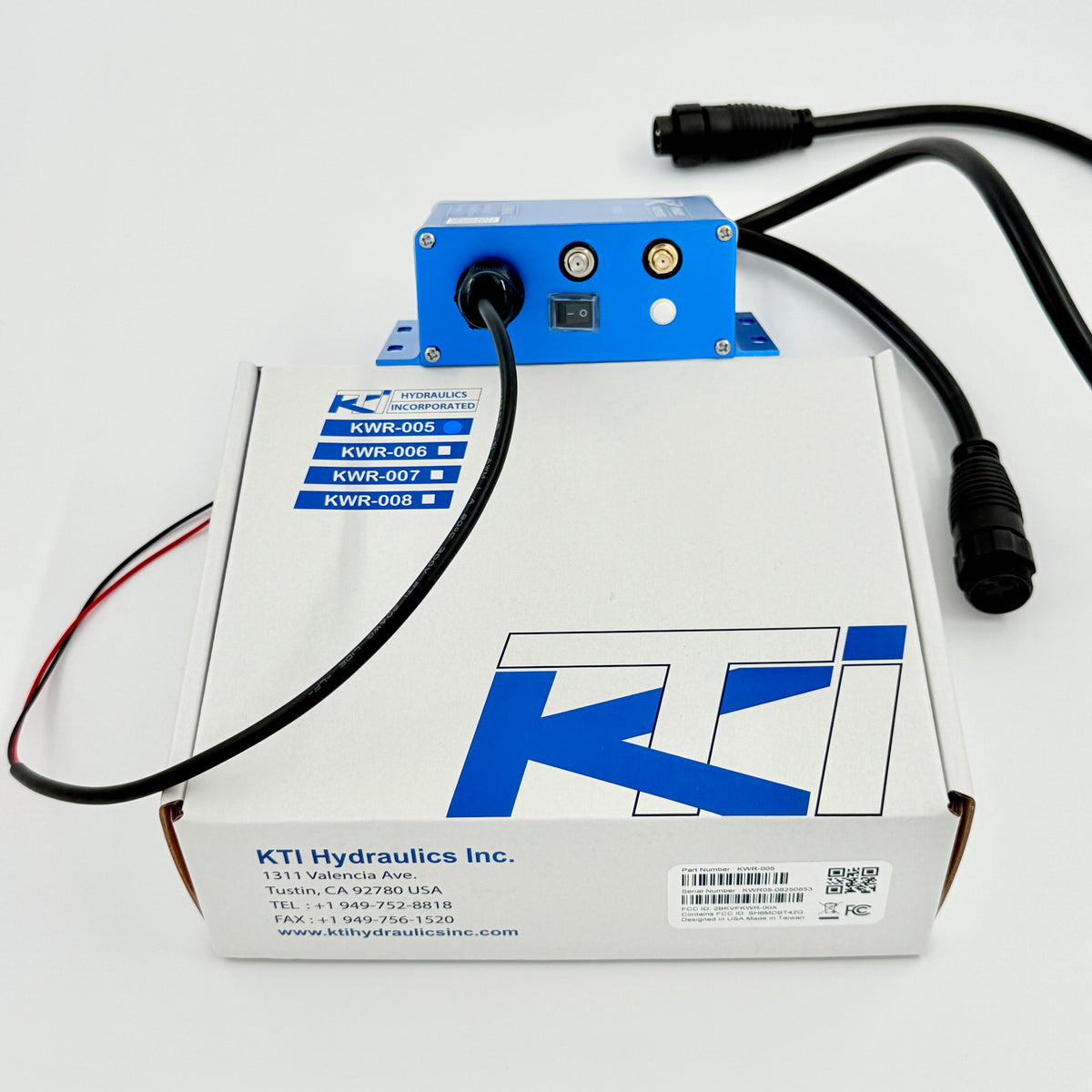

1.) Mount Wireless Receiver.
     a. Select desired mounting location, preferably in a sealed box and away from motor.

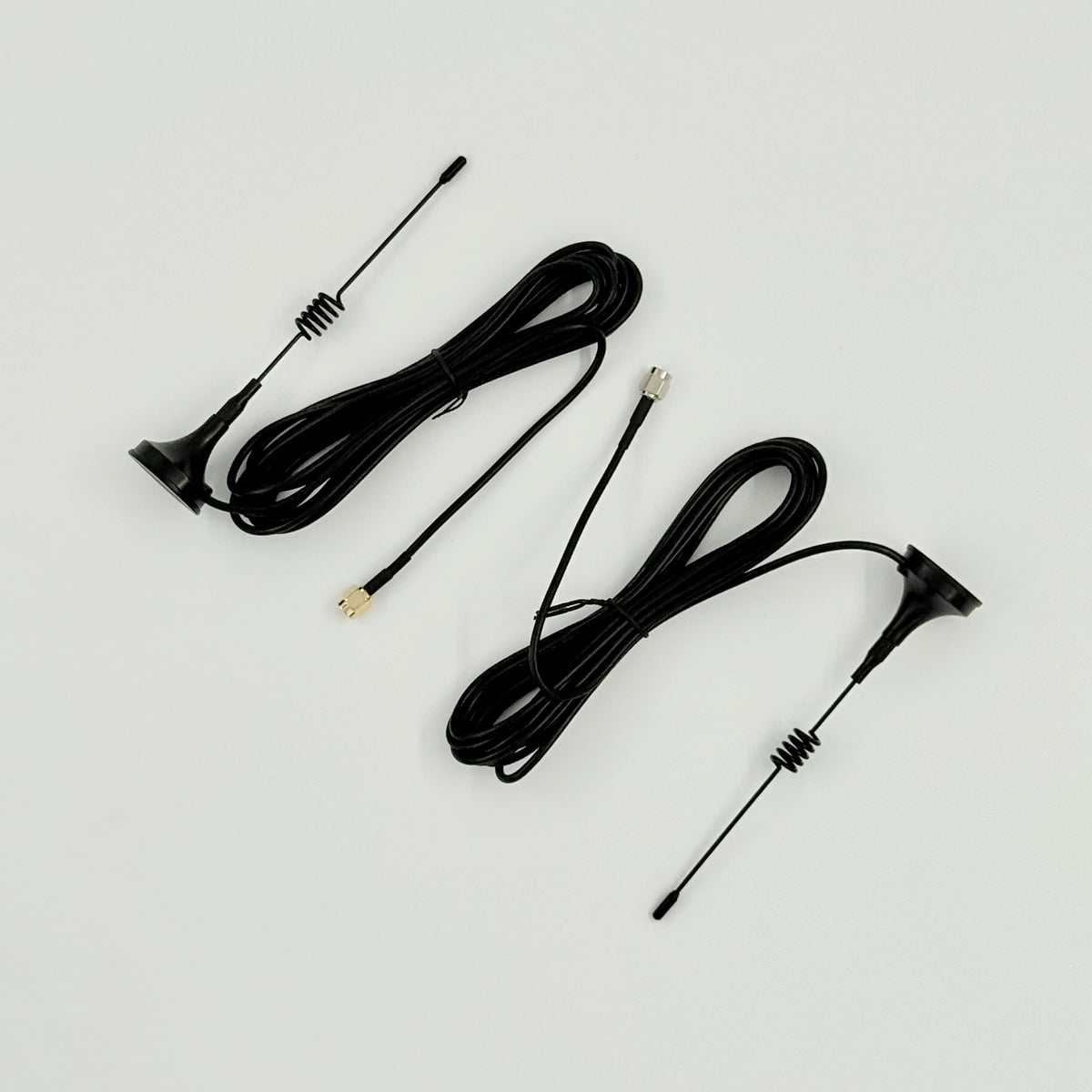

     b. Antenna must be mounted outside of the box (as high as possible).

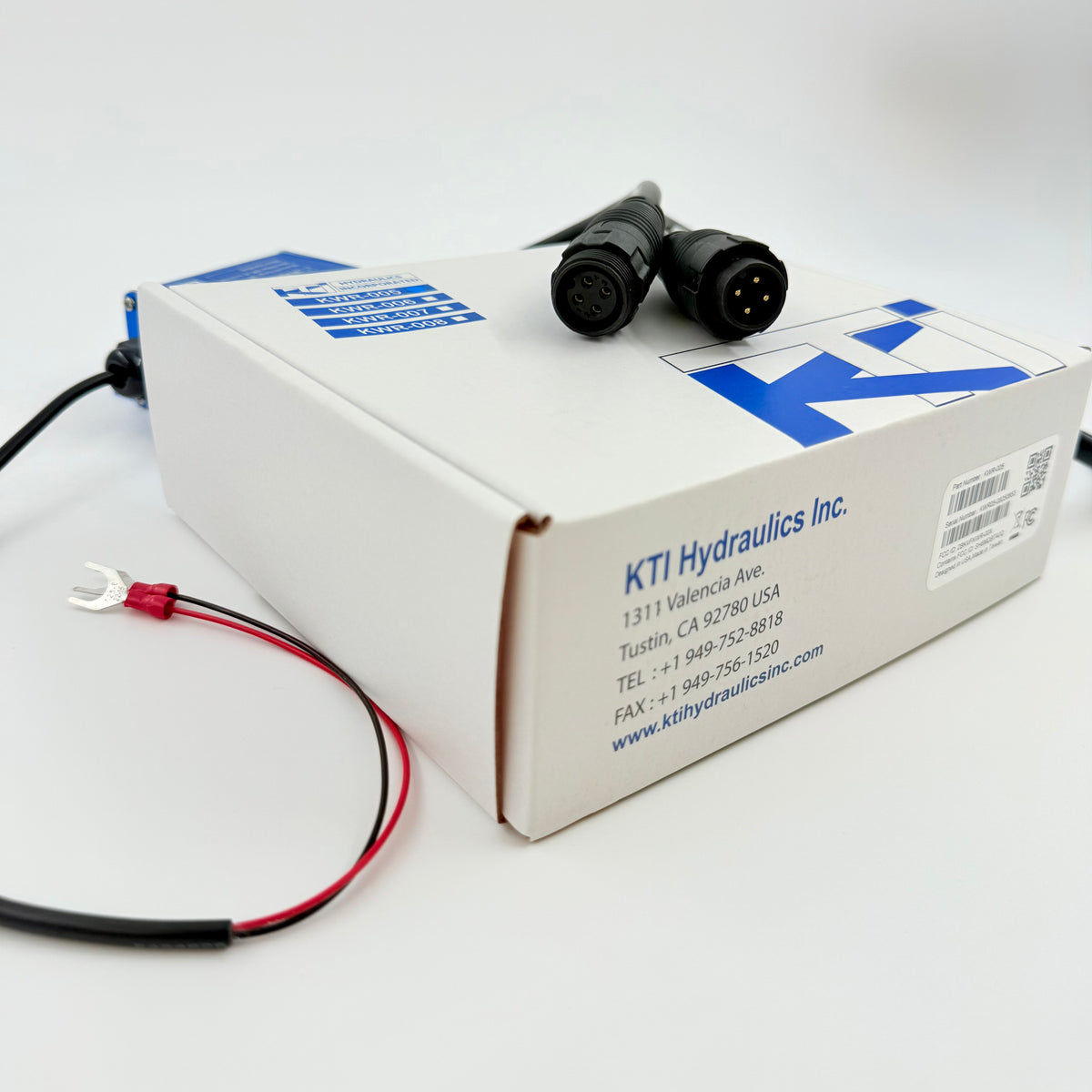

2.) Connect positive (Red Wire) & negative (Black Wire) spade terminals to battery.
     a. Connect (+) Red wire to battery positive.
     b. Connect (-) Black wire to battery negative.
     Note: ensure the power unit is grounded directly to the negative terminal on the battery, which is the
     designated ground location.

3.) Disconnect handheld remote pendant from power unit, and connect the wireless receiver to it.
Connect the handheld remote pendant to the wireless receiver (optional). Test handheld pendant
function.

4.) Power on the KWR unit by activating the switch on the side of the unit

5.) Operate Bluetooth Wireless Unit and Remote Pendant to ensure proper functionality
